Products：358 Anti Climb Fence 、3510 Security Fence 、Airport Fence 、Barbed Wire Fence 、Blunt Top Fence 、Double Wire Fence 、Paladin Fence 、Prison Fence 、Welded Razor Mesh Fence 、

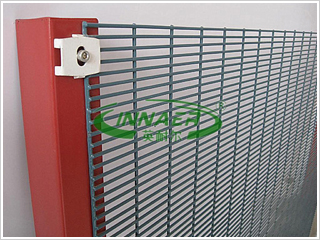

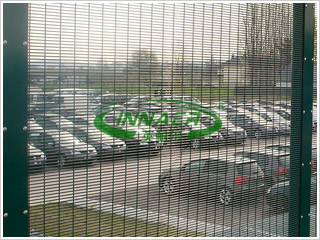

358 anti climb fence-ACF01	358 anti climb fence-ACF02

Why is it called 358 Wire Mesh Fence?

358 comes from its measurements 3" x 0.5" x 8 gauges which equates to approx. 76.2mm x 12.7mm x 4mm (Length x height x Diameter) in metric.

358 security fences are extremely difficult to penetrate, with the small mesh aperture being effectively finger proof, and extremely difficult to attack using conventional hand tools. 358 fences are recognized as one of the most difficult to break through the barrier, because it is difficult to climb. It is called security fencing and high- strength fencing. 358 security fencing panel can be bent in part to enhance the aesthetic effect.

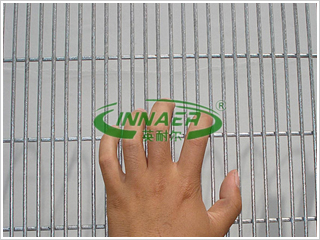

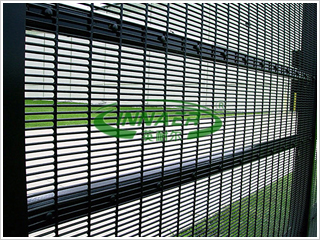

358 anti climb fence-ACF03	358 anti climb fence-ACF04

It has two product specifications:

358 anti climb fence 76.2mm x 12.7mm (3'' x 0.5''), Wire Dia.: 4mm (Gauge 8)
3510 anti climb fence: 76.2mm x 12.7mm (3'' x 0.5''), Wire Dia.: 3mm (Gauge 10)

Features:

Anti-climb: More small openings, no toe or finger holds.
Anti-cut: robust wire and welded joints make cutting very difficult.
High-strength: The superior welding technique and process control create a stronger fusion between the wires.

Finish treatment:There are two treatment types: hot dipped galvanized and plastic coated.
The colors of plastic coated are mainly green and black. Each color is available according to your require.

Post type:The post type is main square post. The feet are combined with cement support with the rivet.

Applications:

Bridge anti-climb guarding & guard safety screening
Psychiatric hospital security fencing
Prison security fencing
Factory machine guards
Walkway security fencing
Airport security fencing
Shipping Port Security fencing
Electrical sub-station fencing
Gas pipelines security fence
High security living area and private field fence

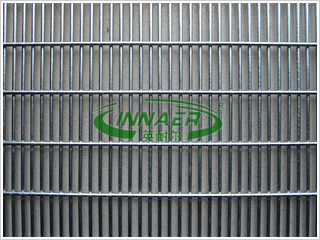

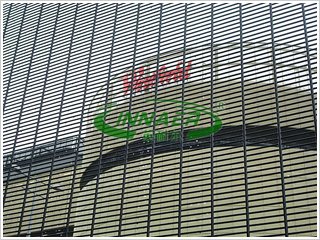

358 anti climb fence-ACF05	358 anti climb fence-ACF06

Panels		Post
Fence	Panel Size	Post Size	Post Height	Total Number of Fixings
Height	Height/Width	Length/Width/Thickness		Inters- 1 clamp	Corners-2 clamp
m	mm	mm	mm
2.0	2007 × 2515	60×60×2.5mm	2700	7	14
2.4	2400 × 2515	60×60×2.5mm	3100	9	18
3.0	2997 × 2515	80×80×2.5mm	3800	11	22
3.3	3302 × 2515	80×80×2.5mm	4200	12	24
3.6	3607 × 2515	100×60×3mm	4500	13	26
3.6	3607 × 2515	100×100×3mm	4500	13	26
4.2	4204 × 2515	100×100×4mm	5200	15	30
4.5	4496 × 2515	100×100×5mm	5500	16	32
5.2	5207 × 2515	120×120×5mm	6200	18	36
