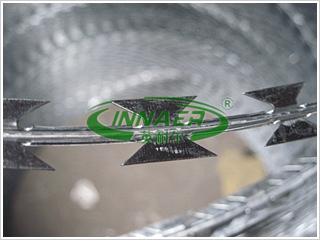

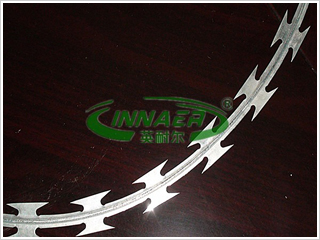

straight type razor barbed wire We can produce razor type barbed wire in straight lines of various blade types . The straight type razor wire can be installed quickly. It can not only save money but also reach the result of frightening and stopping. Materials : galvanized wire or stainless steel wire

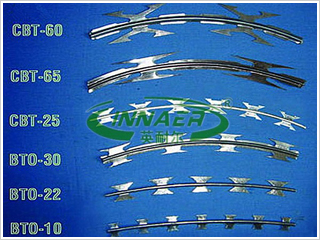

Specification: BTO-10,BTO-12,BTO-18,BTO-22,BTO-28,BTO-30,CBT-60,CBT-65 A- Razor blade specification: Reference No. : BTO-22 Wire Dia.: 2.5 mm -+ 0.1 Thickness (razor blade): 0.5 mm -+ 0.05 Barb length (razor blade): 22 mm -+ 1 Barb width (razor blade): 15 mm -+ 1 Barb spacing (razor blade): 34 mm -+ 1 B- Barbed type wire specification: Outside diameter: 900mm No. of loops: 36 loops Stander length per coil: 9 -10M (5 clips) Type: BTO- 22 Note: concertina crossed type razor barbed C- Other details: Weight: 10 kg/coil (maximum) Tensile of barb: 600-700 N/mm2 Tensile of inside wire: 1500N/MM2 Zinc content: galvanized 12-15 g/m2, hot-dip galvanized 60-200g/m2 Special specifications for straight type razor wire are available on request. |
