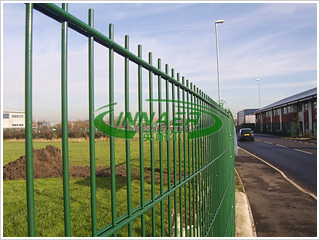

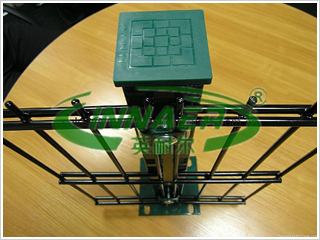

Double Wire Fence-DWF01	Double Wire Fence-DWF02

The fence is composed with flawless welded steel post and high strength welded horizontal wire fence.

Flat and strong panel with high tensile strength.

It is high securty fence system.The parts are connected with special way with out fitting, high fastening and convenient installation.

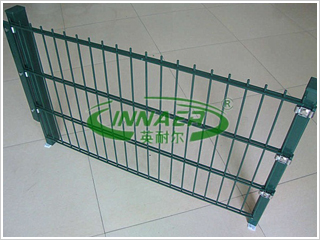

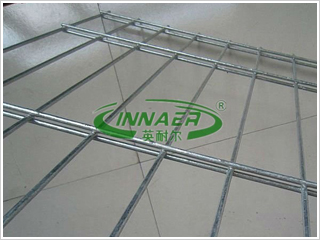

Double Wire Fence-DWF03	Double Wire Fence-DWF04

Every item of the products is made from high-quality steel.

The panel was electric galvanized after machined; then polyester powder spray coated.

On request, all the items can be polyester powder coated. The thickness is 100-120microns

surface treatment:

electro gal. :40-60g.m2

hot dipped gal.: 40-500g/m2

powders sprayed coating: 160-240microns

PVC/PE dipped coating: 600-1000microns

Specification:wire diameter: 6/5/6, 8/6/8mm,Mesh: 200x/50mm,Width: 2m, 2.2m,2.5m, 3m

Hiehgt: 630mm, 830mm, 1030mm, 1230mm, 1430mm, 1630mm, 1830mm, 2030mm, 2230mm, 2430mm

The design of double wire can stay the destroy, it is suitable for the high security place.

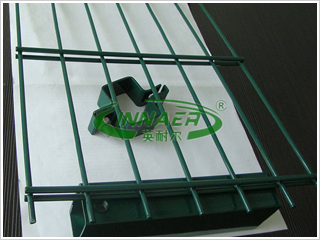

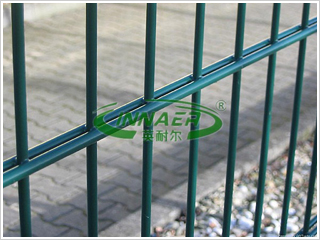

Double Wire Fence-DWF05	Double Wire Fence-DWF06

Double Mesh Fence Material
Using high quality Iron Rod as raw material, the welded wire panels, after galvanization, Powders Primer, and Powders top coating; it can resist the corrosive and ultraviolet radiation very strongly. The thickness of powder coating is 100-120 microns usually. The choose wire diameters are 6MM*2+5MM*1. 8MM*2+6MM*1. It obtains high strong powers to resist the construction.

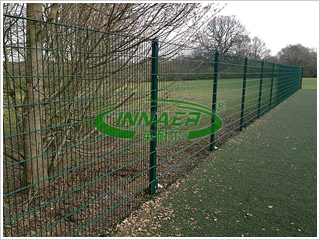

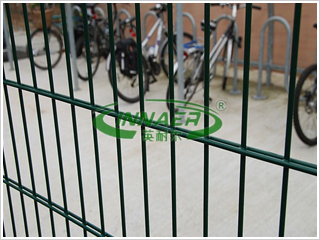

Double Wire Fence-DWF07	Double Wire Fence-DWF08

Double Mesh Fence Post

Square Post 50*50mm, 60*60mm

Rectangular Post

2400mm high: 60mm x 40x2.5mm
3800mm high: 80mm x 60x3mm
5000mm high: 100mm x 50mm
6000mm high: 120mm x 60mm
With plastic caps or Roofing rainhat.

3.Double Mesh Fence Specification

Double Wire Fence-DWF09	Double Wire Fence-DWF10
