 |  | | Welded Razor Mesh-WRM01 | Welded Razor Mesh-WRM02 |

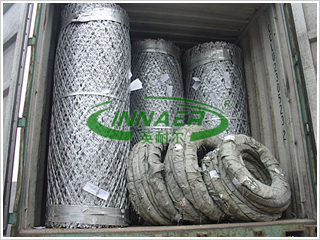

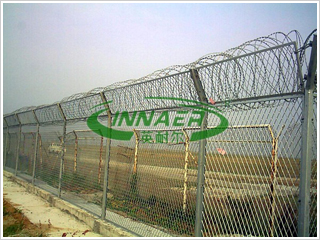

Welded Razor Mesh is a multi-functional, made of straight-blade wire welded together, packaging into a roll form for transport. Razor wire mesh is used in operations to pave the field after the installation of a blade barrier. This product can protect you and your property, and ensures the safety of the protective barriers. Razor mesh is installed in various parts of the world's airports, military bases, water substation, the border fence, oil depots, and factories and so on. Common Specification:
Mesh size: 150mm*300mm, 70mm*150mm, 100mm*150mm
Height of 1.2, 1.8, 2.1 and 2.4 meters, have piece and roll type. Benefits:
1. It is almost impossible to climb
2. High-strength steel core very difficult to cut off
3. Powerful security fence barriers neat appearance
4. No secondary use, so he will not be stolen
5. Extremely simple to install, needs three to four to install molding  |  | | Welded Razor Mesh-WRM03 | Welded Razor Mesh-WRM04 |  |  | | Welded Razor Mesh-WRM05 | Welded Razor Mesh-WRM06 |
NO | RAZOR STYLE | THICKNESS | CORE WIRE DIAMETER | RAZOR LENGTH | RAZOR LENGTH | RAZOR SPACE | BTO-12 |
| 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 | BTO-18 |
| 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 | BTO-22 |
| 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 | BTO-28 |
| 0.5±0.05 | 2.5 | 28 | 15 | 45±1 | BTO-30 |
| 0.5±0.05 | 2.5 | 30 | 18 | 45±1 | BTO-60 |
| 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 | BTO-65 |
| 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
DIAMETER | cylinder number | cover length | Produce model | remark | 450mm | 33 | 8M | CBT-60.65 | one loop | 500mm | 41 | 10M | CBT-60.65 | one loop | 700mm | 41 | 10M | CBT-60.65 | one loop | 960mm | 53 | 13M | CBT-60.65 | one loop | 450mm | 112 | 17m | BTO-12.15.20.22 | cross style | 500mm | 102 | 16M | BTO-12.15.20.22 | cross style | 600mm | 86 | 14M | BTO-12.15.20.22 | cross style | 700mm | 72 | 12M | BTO-12.15.20.22 | cross style | 800mm | 64 | 10M | BTO-12.15.20.22 | cross style | 960mm | 52 | 9M | BTO-12.15.20.22 | cross |
 |  | | Welded Razor Mesh-WRM07 | Welded Razor Mesh-WRM08 |
|
