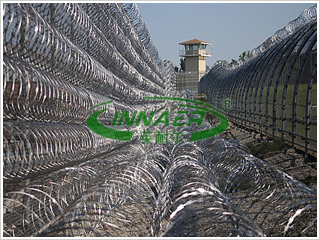

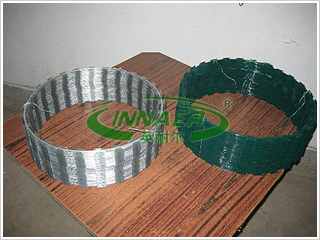

Concertina Single Razor Wire-01	Concertina Single Razor Wire-02

Concertina Single Razor Wire

Razor barbed wire mesh is also named razor barbed wire or concertina barbed wire.
It is a new type mesh fence which is made by hop-dip galvanized stainless steel plate. It is good protective properties protective as metal construction materials is the most popular by people.

Concertina type barbed tape wire is installed without clips, it runs in natural loops on walls. Cost less and easy installation.

Material: Low carbon steel wire, galvanized wire, iron wire, galvanized steel sheets, stainless steel sheets.

Feature: High tensile strength and good flexibility, uniform layer of zinc, corrosion-resistant.

Assortments:
Razor barbed wire mesh, galvanized razor barbed wire, welded razor barbed wire, cross razor barbed wire, single razor barbed wire, concertina razor barbed
specifications as your request

Features: Aesthetic appearance, protective excellent performance.

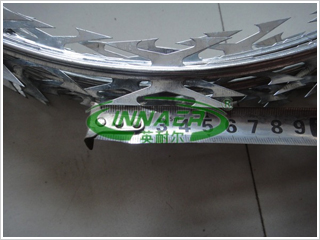

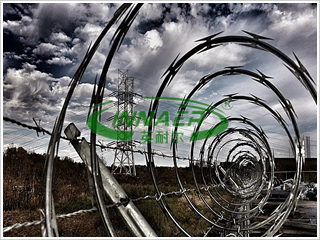

Concertina Single Razor Wire-03	Concertina Single Razor Wire-04

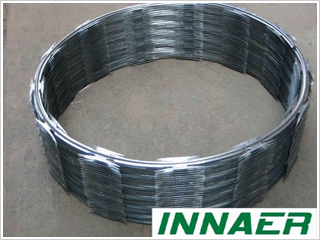

Concertina Single Razor Wire-05	Concertina Single Razor Wire-06

Razor ;Blade ;Specification
Reference Number	Blade Style				Thickness	Wire Dia	Barb Length	Barb Width		Barb spacing
BTO-10					0.5±0.05	2.5±0.1	12±1	13±1		26±1
BTO-12					0.5±0.05	2.5±0.1	12±1	15±1		26±1
BTO-18					0.5±0.05	2.5±0.1	18±1	15±1		33±1
BTO-22					0.5±0.05	2.5±0.1	22±1	15±1		34±1
BTO-28					0.5±0.05	2.5±0.1	28±1	15±1		34±1
BTO-30					0.5±0.05	2.5±0.1	30±1	18±1		34±1
CBT-60					0.6±0.05	2.5±0.1	60±2	32±1		96±2
CBT-65					0.6±0.05	2.5±0.1	65±2	21±1		100±2
RAZOR WIRE SPECIFICATION
COIL OD		LOOPS/ COIL	TOTAL LENGTH	SIZE					TYPE
450mm		33	7-8M	CBT-60.65					Single coil
500mm		56	12-13M	CBT-60.65					Single coil
700mm		56	13-14M	CBT-60.65					Single coil
960mm		56	14-15M	CBT-60.65					Single coil
450mm		56	8-9M (3 CLIPS)	BTO-10.12.18.22.28.30					Cross type
500mm		56	9-10M (3 CLIPS)	BTO-10.12.18.22.28.30					Cross type
600mm		56	10-11M (3 CLIPS)	BTO-10.12.18.22.28.30					Cross;type
600mm		56	8-10M (5 CLIPS)	BTO-10.12.18.22.28.30					Cross type
700mm		56	10-12M (5 CLIPS)	BTO-10.12.18.22.28.30					Cross type
800mm		56	11-13M (5 CLIPS)	BTO-10.12.18.22.28.30					Cross type
900mm		56	12-14M (5 CLIPS)	BTO-10.12.18.22.28.30					Cross type
960mm		56	13-15M (5 CLIPS)	BTO-10.12.18.22.28.30					Cross type
980mm		56	14-16M (5 CLIPS)	BTO-10.12.18.22.28.30					Cross type


Concertina Single Razor Wire-07	Concertina Single Razor Wire-08
