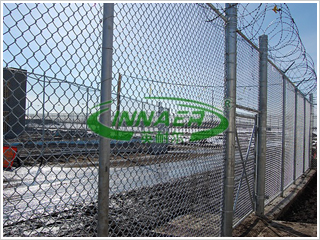

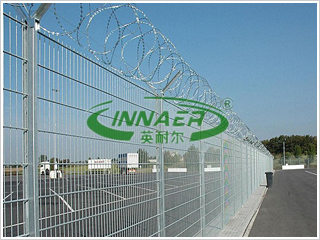

Prison Fence-PF01	Prison Fence-PF02

Prison fence use the high strength bending fence panel, 358 fence panel ,or framed fence as the mainly body. Then connect with the Y shape post and razor mesh .Sometimes we also use the square post, angle iron, half-Y post. The body also can use the expanded metal, diamond fence, or chain link fence.

There are several styles about the V shape frame in the top Y post:
1、 Install V shape welded mesh and razor mesh.
2、 Install high strength razor
3、 Use the barbed wire in the both side of the V shape frame.

Material of the prison fence: low carbon steel wire, Galfan low carbon steel wire, stainless steel wire
Surface treatment of the prison fence : PVC coated or plastic spraying first , then electric galvanized or hot-dipped galvanized ; or use the electric galvanized or hot-dipped galvanized wire as material, and then pvc coated or plastic spraying.

This product has good anti-aging, resistant corrosion character. It has a beautiful appearance. When use it as a protect fence, it also make our place more beautiful. This product has the advantage of high security, high anti-climb etc .It is widely used in the prison, airport, military base and other need high security protection places.

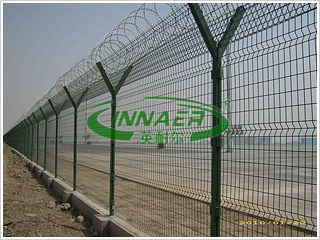

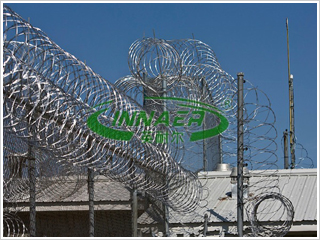

Prison Fence-PF03	Prison Fence-PF04

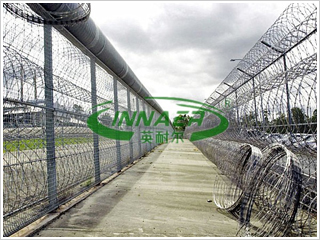

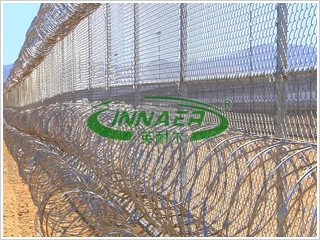

Prison Fence-PF05	Prison Fence-PF06

Generally used product specification:
Hole size: 50*100 mm; 50*150mm; 50*200mm
Diameter: 5.2—6.0mm
Fence size: 1.5*2.5m; 1.8*3.0m; 2.0*3.0m; 2.5*3.0m
Post: 60*60mm; 100*100mm; 60*100mm
Thickness of post: 1.5mm, 2.0mm, 2.5mm
Height of post: it is decided by the mesh height and V panel height
V shape panel size: 400—500mm: Flare Angle:45°
Fixed form: flange post; wall external fixation, wall internal fixation, concrete pouring on the ground.
